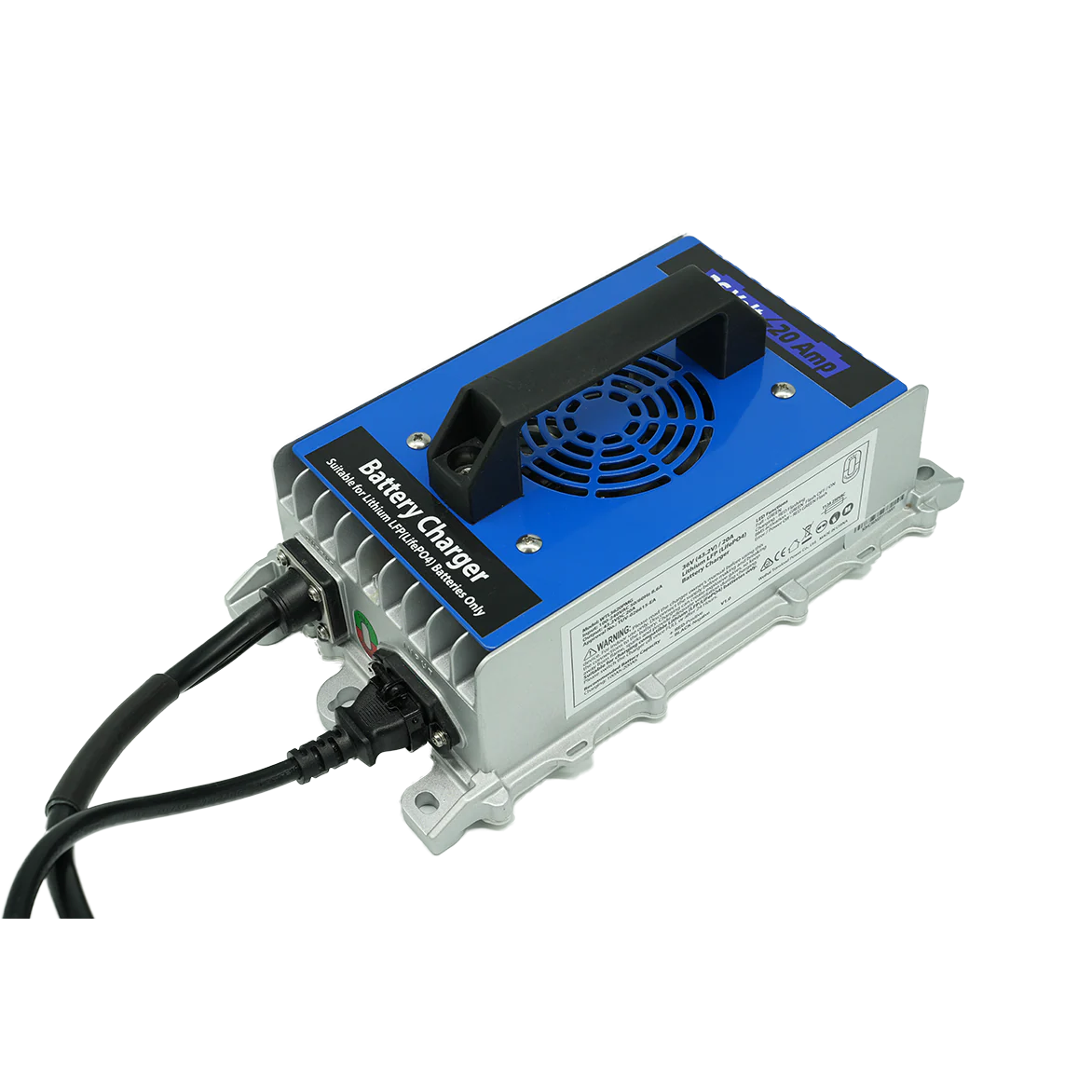

On-Board 36V 20A High-Precision Marine Lithium Battery Charger

On-Board 36V 20A High-Precision Marine Lithium Battery Charger

The OzCharge On-Board 36V 20A High-Precision Marine Lithium Battery Charger is designed for Lithium LFP (LifePO4) batteries, see our range of 36V batteries. Get the quickest, most intelligent, and efficient charge for your battery.

This charger offers users extended battery life and reliability with its built-in protection and innovative safety features.

Features:

• IP68 Rating
• Charges 36V batteries
• Marine-grade construction
• Overcurrent limit
• High voltage safety
• Reverse connection protection
• Temperature protection
• Anti-Walking function
• LED indicator for Charging Process
• Full-Auto timing shutdown
• 2-Year Warranty



Safety:

• Short-Circuit: Yes
• Open-Circuit: Yes
• Overheating: Yes
• Overcharge: Yes
• Spark-Proof: Yes
• Reverse Polarity: Yes

Size:

• Height: 165.1mm
• Width: 201.3mm
• Depth: 56.0mm
• Weight: 2.7kg

Operating Requirements:

• Line Voltage: 120V to 240V AC
• Frequency: 50Hz to 60Hz
• Operating Temperature: -4° to 104° F (-20° to 50° C)
• Storage Temperature: -22° to 140° F (-30° to 60° C)
• Relative Humidity: 0 to 95% Non-Condensing

Cord Management:

• DC Cable + Eyelet Length: 182cm
• DC Cable Size: 16 AWG
• DC Fuse Size: 7.5 AMP MINI ® Blade Fuse
• AC Cable Length: 72 Inches (182cm)
• AC Cable Size: 18 AWG
• Oil, gas, grease, water, chemical, UV, abrasion resistant
• Red = Negative, Yellow/Green = Ground, Purple = Neutral
